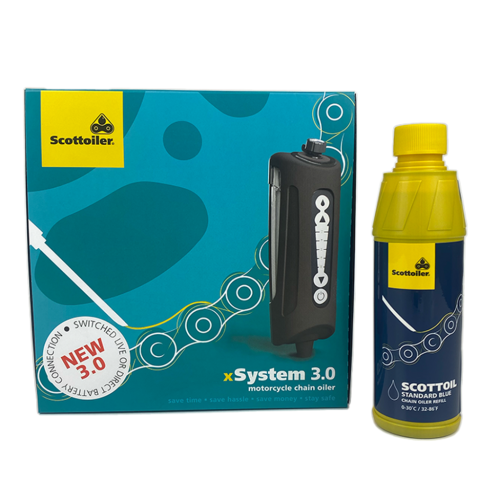

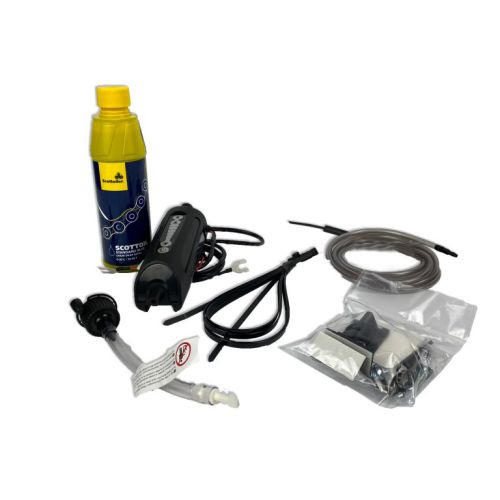

The Scottoiler xSystem 3.0 is the easiest to install and most user friendly chain oiler. The xSystem 3.0 is the third generation of this popular Scottoiler kit. The revolutionary design makes the xSystem 3.0 super compact and at the same time offers optimal chain lubrication. The new Scottoiler xSystem is perfect for any modern commuter or tourer looking for a discreet chain lubrication solution.

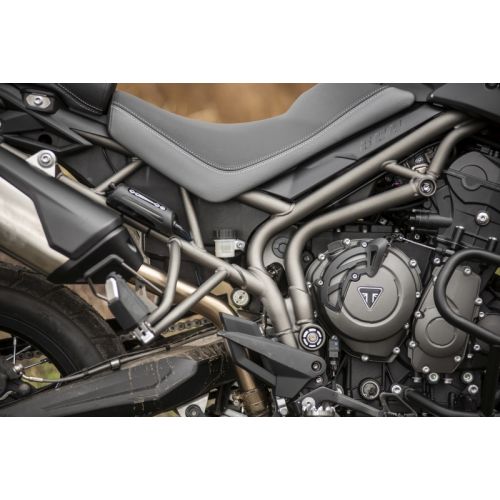

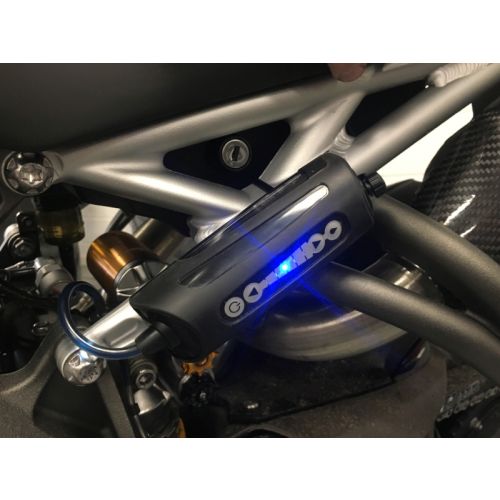

The xSystem 3.0 can be mounted in various locations on the frame or under the seat.

Proven functions of the xSystem:

- Motion activated chain oiler system

- Easy and user-friendly installation on all motorcycles

- 15 flow rates - now with additional selection for precise lubrication

New additional features of xSystem 3.0:

• New software with faster response speed to key presses

• Power consumption significantly reduced, quiescent current consumption only 0.087 mA

• Reinforced seals and a new and improved housing.

• Can be connected to a switched power connection or directly to the battery

• No calibration required

• Equipped with a solenoid valve

• No check valve is required

FUNCTION

When the device is turned on, accelerometer vibrations are monitored. When movement is detected, the solenoid valve opens at a preset time interval between 10 s and 6 min. Oil flows through the hose to the rear sprocket. The "open time" of the solenoid valve varies with temperature, i.e. the warmer it is, the shorter the open time. This ensures a consistent oil flow even during temperature fluctuations.
